INDUSTRIAL RANGE
UFO HIGHBAY
JH-HB100W-07
UFO HIGHBAY
Product Features
• Up to 130 Im/W, a direct replacement for 250W/400W MH high bay.
• 50°,90°,120° (clear/frosted lens),150°beams are avaialble for various applications.
• Die-cast aluminum housing,polyester powder painted finish, corrosion resistant.

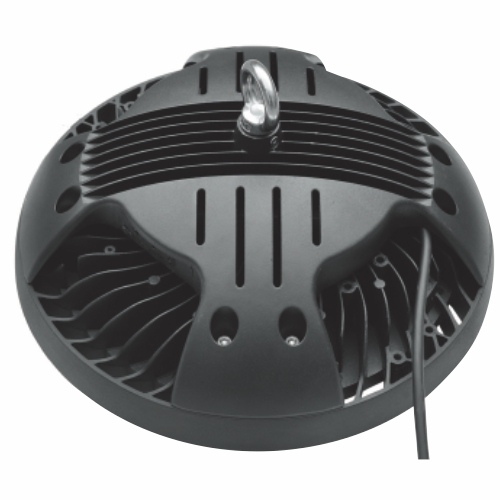

• Integrated cooling ribs for effective heat transfer.
• Lens material:UV-stabilized polycarbonate (PC) from Bayer.
• Sealing gasket made with mateirals from Dow Corning, maintaining high performance
• between-600C-1800C.
• Aiming angles can be adjusted with an increment of 150.
• IP66 and IK08 rated.

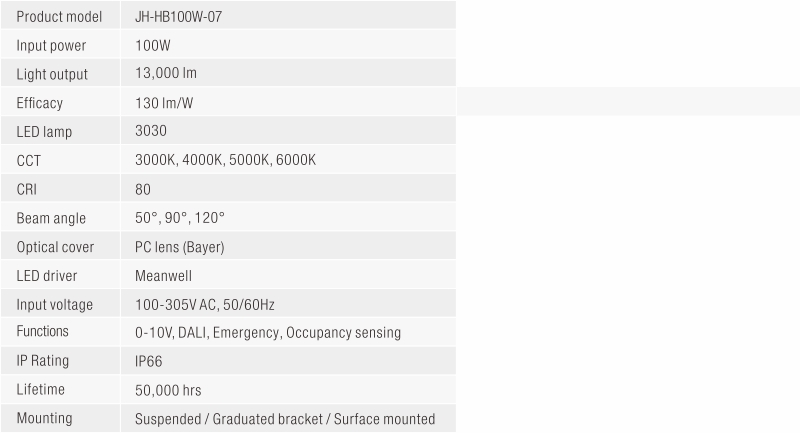

Specifications

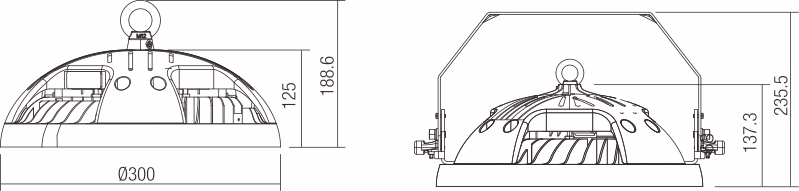

Dimensions(mm)
Photometrics
Applicaions

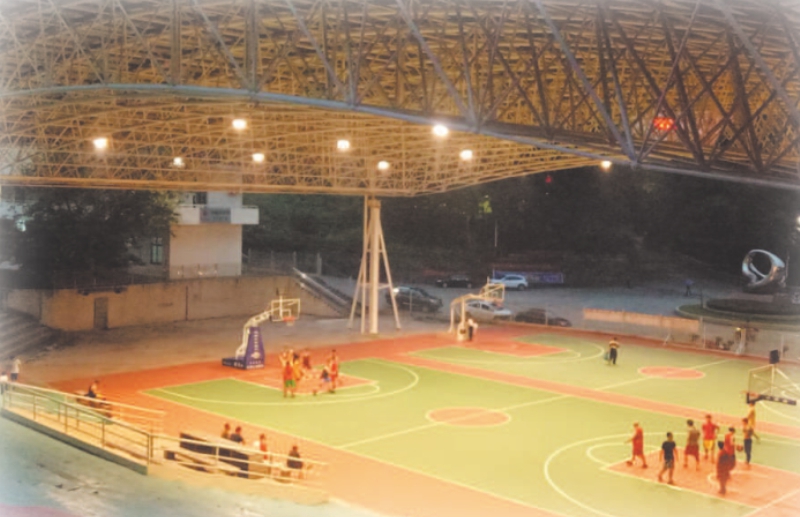

Projects
